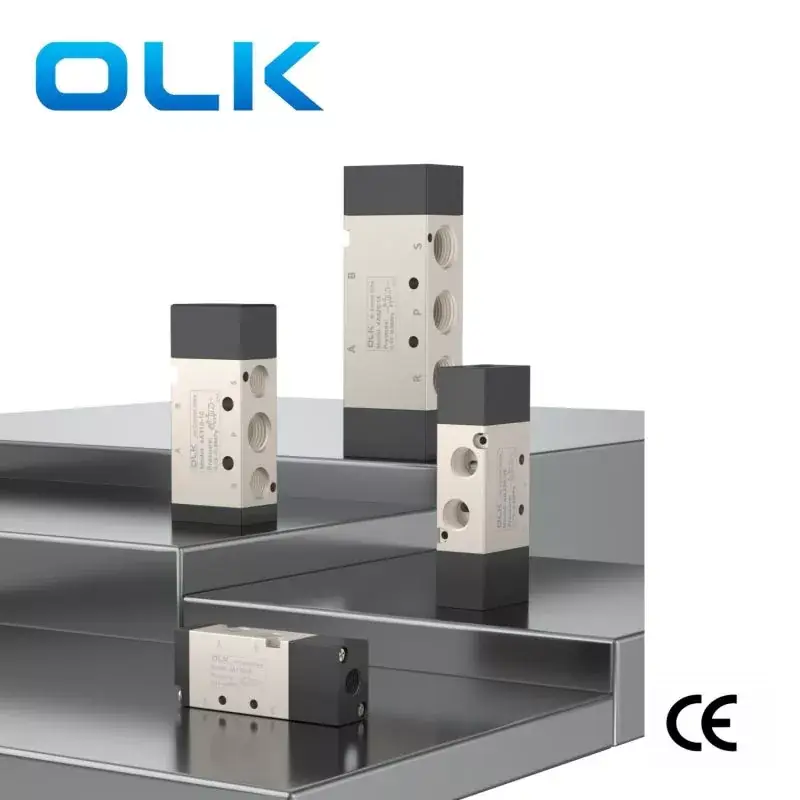

The Ouleikai (OLK) 4A Series Air Control Valve 5 Way enables control and switching of various fluids and can control double-acting cylinders. The 4A series is controlled by air, ensuring fast response speed and accurate operation to guarantee the stability and precision of gas control. It is strictly prohibited to use this product under conditions exceeding the specified range to avoid affecting the product's lifespan and safety.
SYMBOL:
Ordering code
4A
1
10
06
MODEL
CODE
VALVE TYPE
PORT SIZE
4A:2 position 5 way valve/3 position 5 way valve
1:100 series
10:Single solenoid 5/2 way
M5:M5X0.8
2:200 series
20:Double solenoid valve 5/2 way
06:G1/8
3:300 series
30C:Double solenoid valve 5/3 way closed center
08:G1/4
4:400 series
30E:Double solenoid valve 5/3 way exhaust center
10:G3/8
30P:Double solenoid valve 5/3 way pressure center
15:G1/2

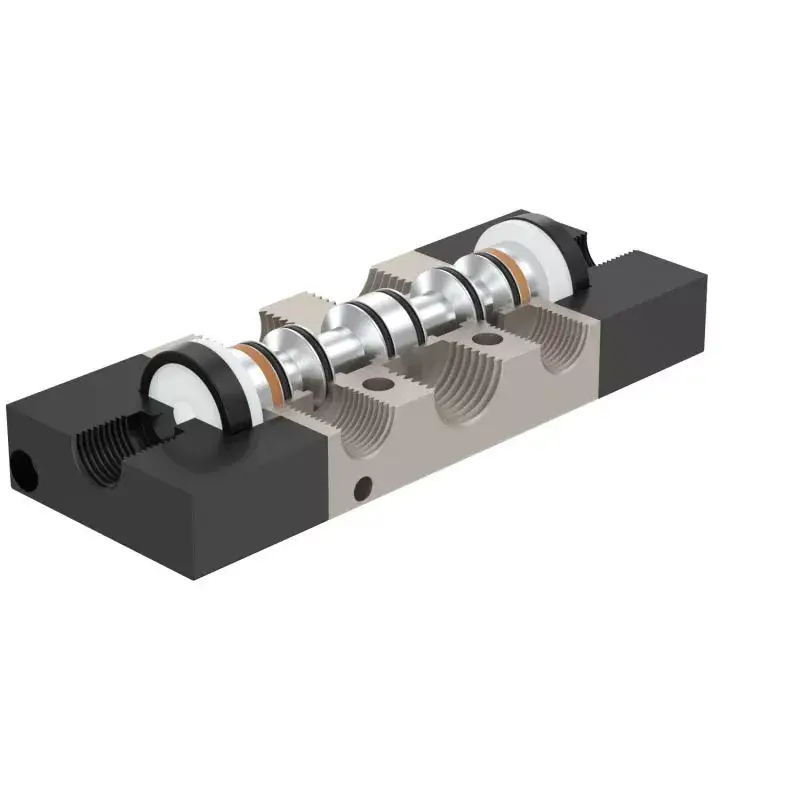

1. Piston-type structure, excellent sealing, responsive reaction;
2. Three-position solenoid valves offer three central functions to choose from;
3. Double-head two-position pneumatic valves feature a memory function;
4. The inner hole is processed with a special technique, resulting in low friction resistance, low start-up pressure, and long service life;
5. No need for oil lubrication;
6. Can be integrated with a base to form a valve group, saving installation space.
|
working medium |
Air (filtered through a filter over 40μm) |
|
Action |
external air control |
|
lubricating |
unnecessary |
|
Working pressure range MPa(psi) |
0.15∼0.8(21~114) |
|
Guaranteed pressure resistance |
1.5MPa (215psi) |
|
Working temperature °C |
-20∼70 |
|
Body material |
aluminum alloy |
|
model |
Port diameter |
number of positions |
highest operating frequency |
Effective cross-sectional area mm² (CV value) |
|
4A110-M5 |
M5 |
2 position 5 way |
5 times/second |
5.5(0.31) |
|
4A120-M5 |
M5 |
2 position 5 way |
5 times/second |
5.5(0.31) |
|
4A130C-M5 |
M5 |
Three position five way |
3 times/second |
5.0(0.28) |
|
4A130E-M5 |
M5 |
Three position five way |
3 times/second |
5.0(0.28) |
|
4A130P-M5 |
M5 |
Three position five way |
3 times/second |
5.0(0.28) |
|

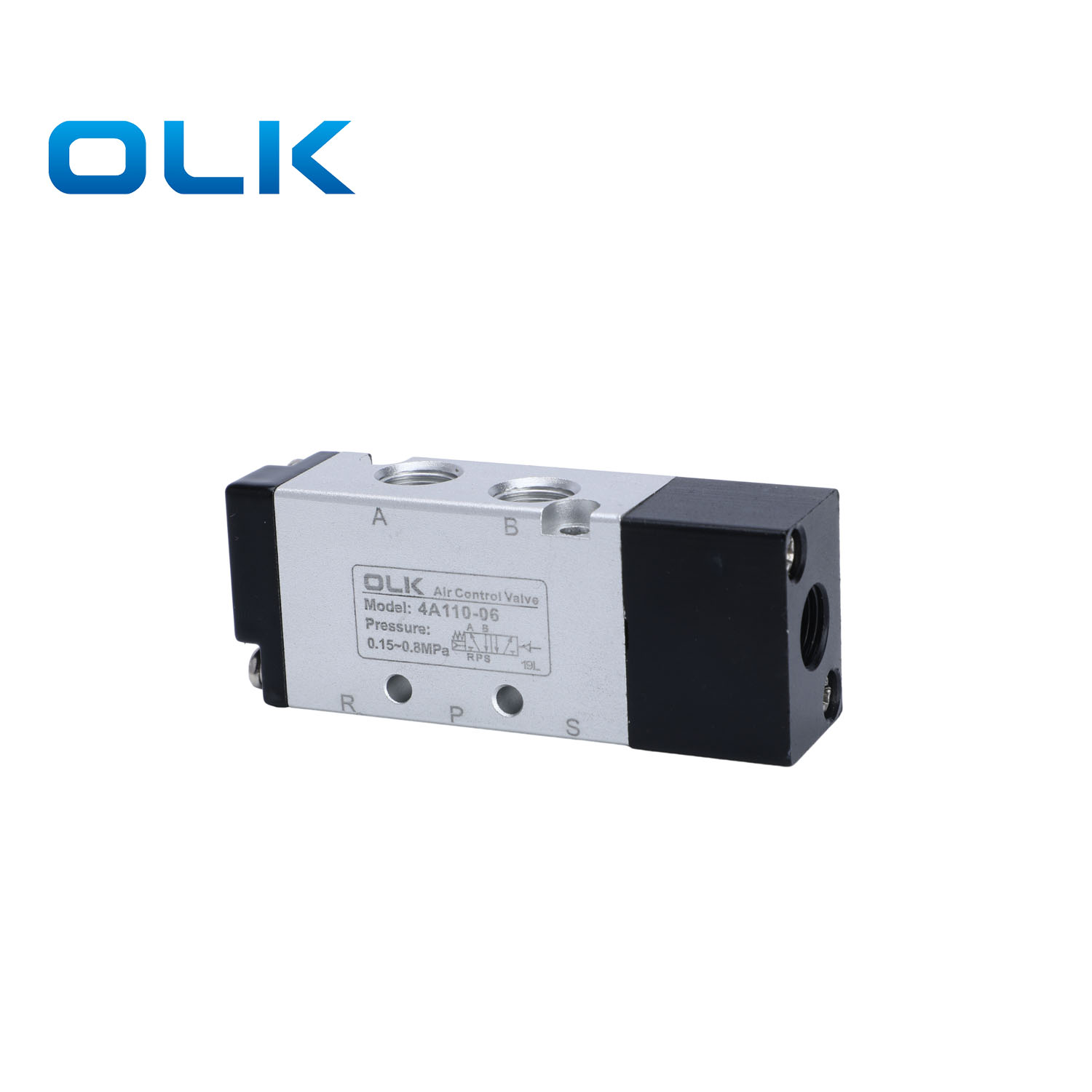

4A110-06 |
G1/8 |
2 position 5 way |
5 times/second |
12.0(0.67) |
|

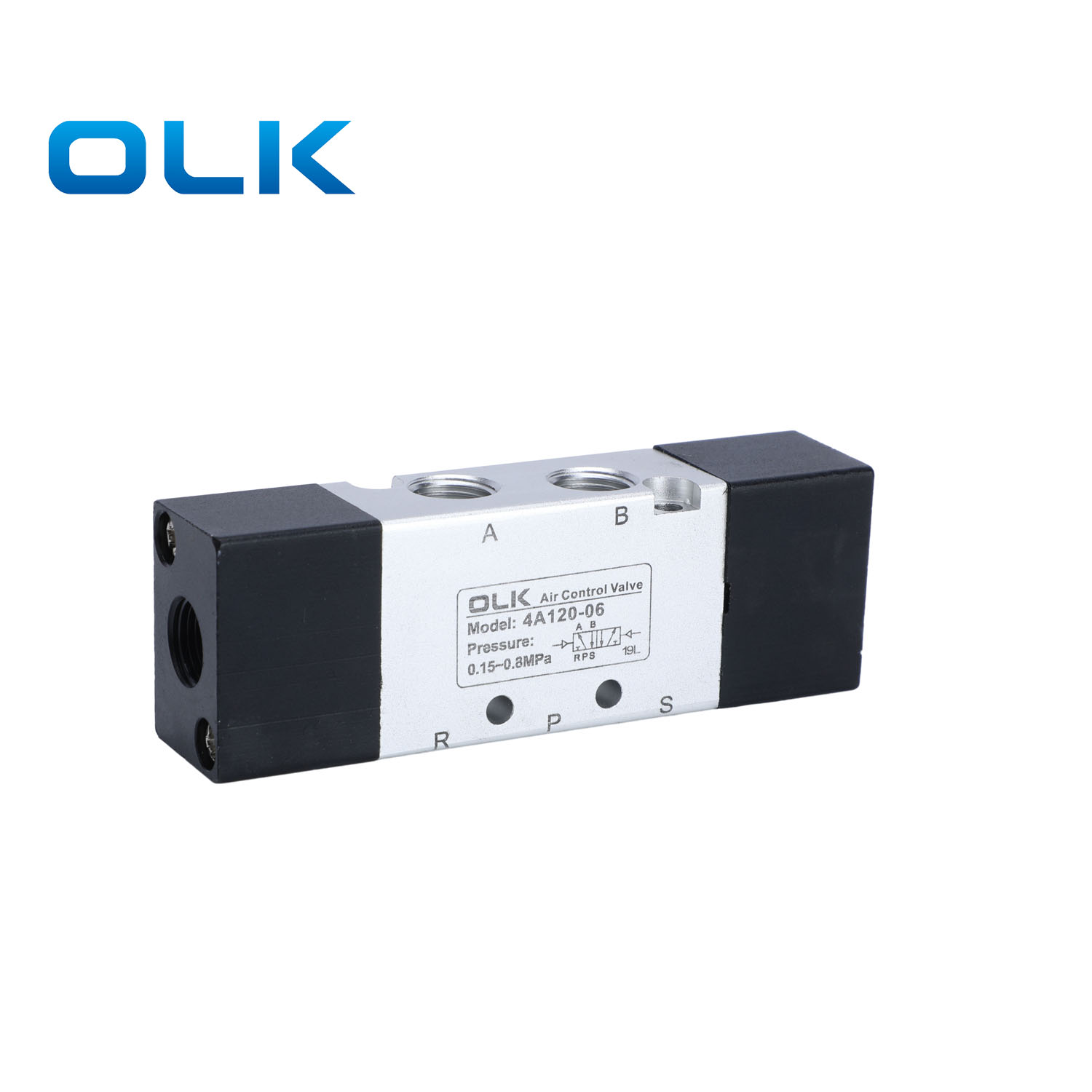

4A120-06 |
G1/8 |
2 position 5 way |
5 times/second |
12.0(0.67) |
|

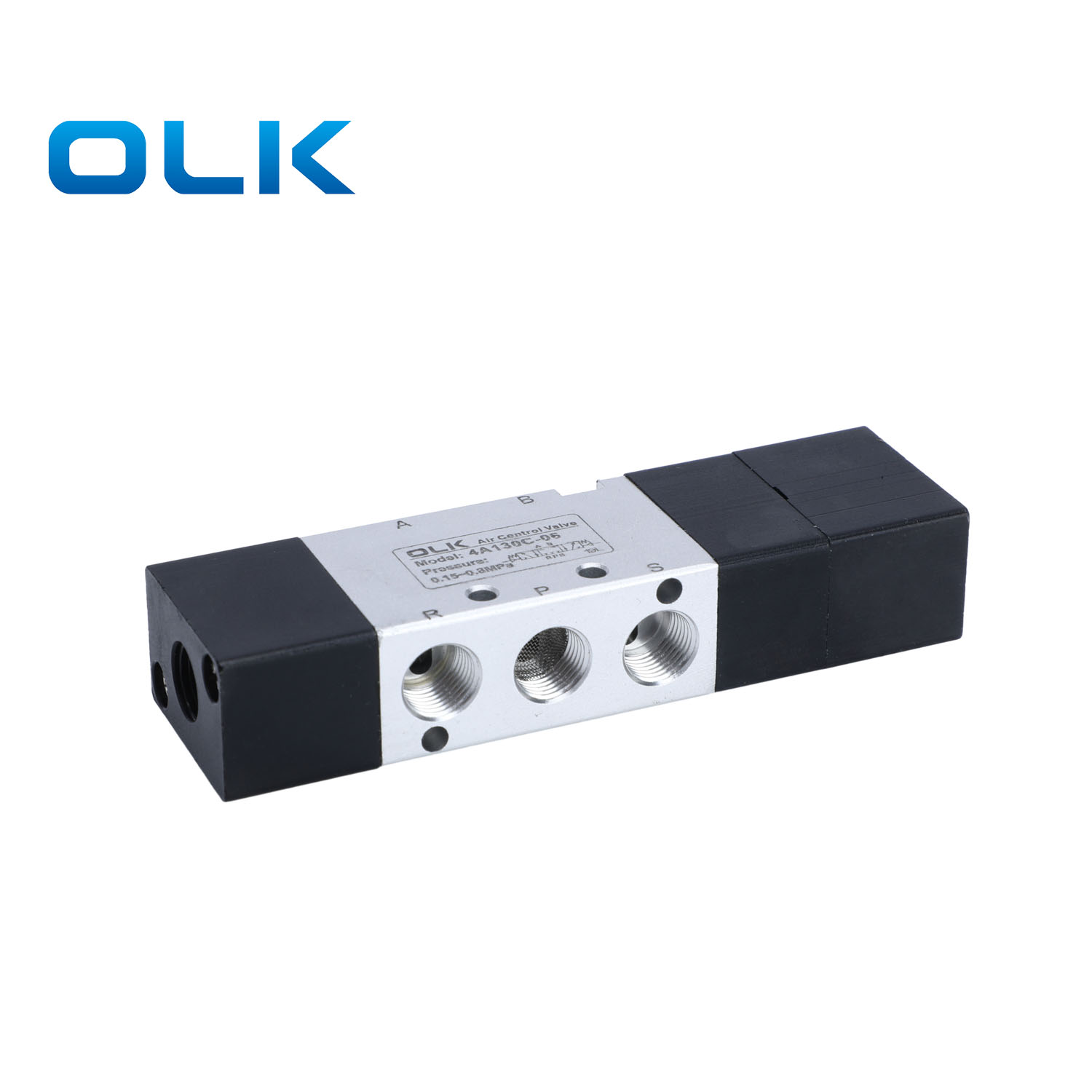

4A130C-06 |
G1/8 |
Three position five way |
3 times/second |
9.0(0.50) |
|
4A130E-06 |
G1/8 |
Three position five way |
3 times/second |
9.0(0.50) |
|
4A130P-06 |
G1/8 |
Three position five way |
3 times/second |
9.0(0.50) |
|
4A210-06 |
G1/8 |
2 position 5 way |
5 times/second |
14.0(0.78) |
|

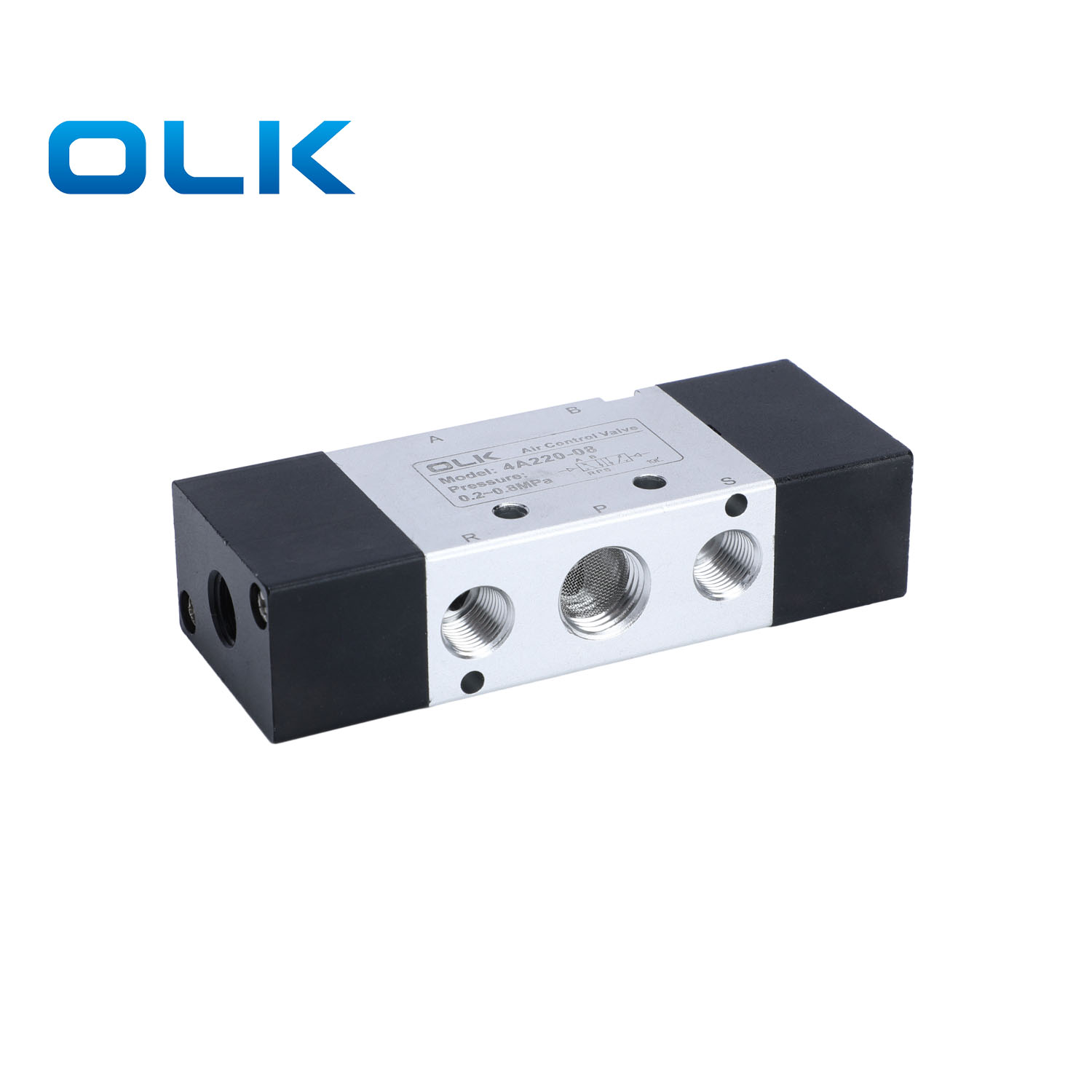

4A220-06 |
G1/8 |
2 position 5 way |
5 times/second |
14.0(0.78) |
|
4A230C-06 |
G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4A230E-06 |
G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4A230P-06 |
G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|

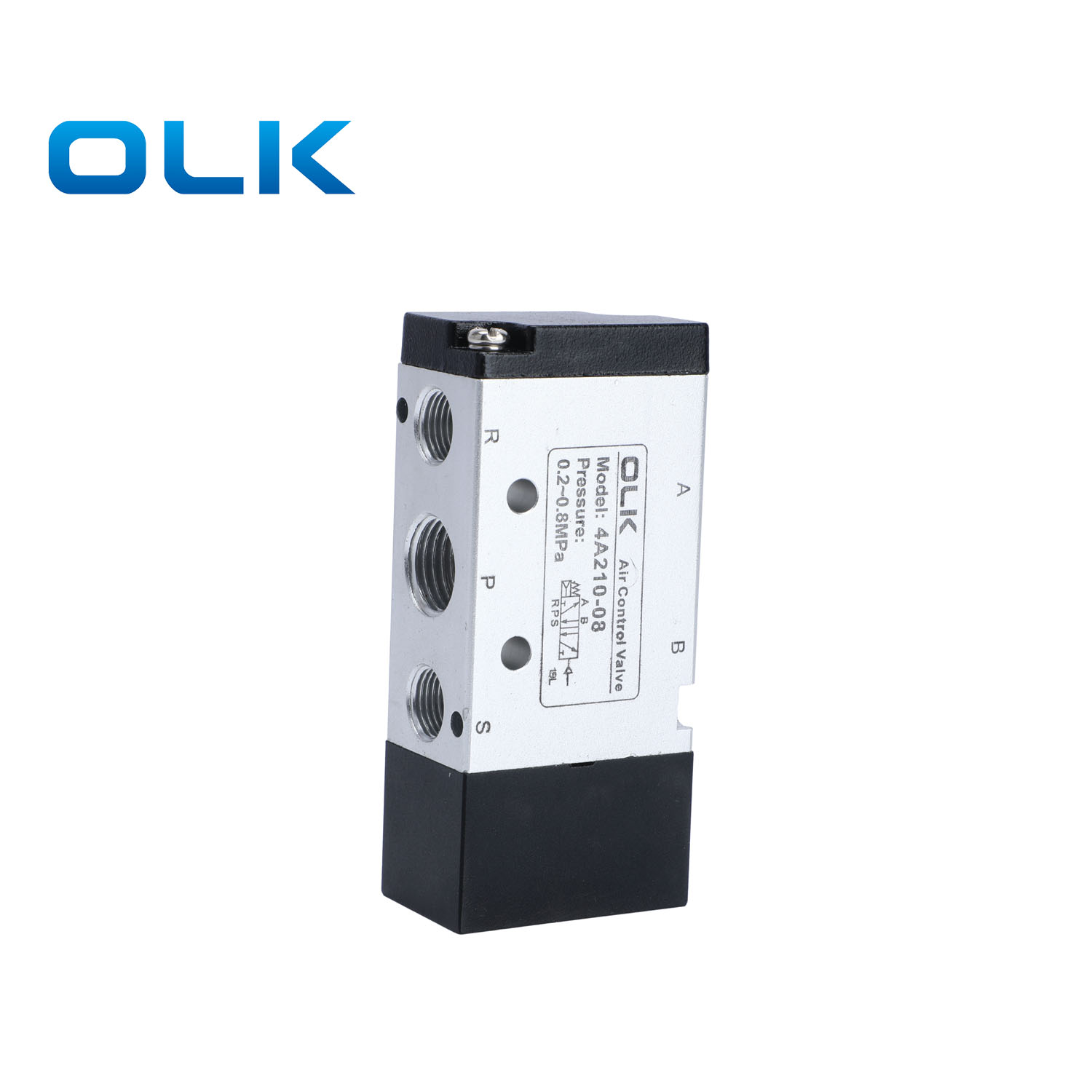

4A210-08 |
Inlet=Outlet=G1/4 Exhaust=PT1/8 |
2 position 5 way |
5 times/second |
16.0(0.89) |
|
4A220-08 |
Inlet=Outlet=G1/4 Exhaust=PT1/8 |
2 position 5 way |
5 times/second |
16.0(0.89) |
|
4A230C-08 |
Inlet=Outlet=G1/4 Exhaust=PT1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4A230E-08 |
Inlet=Outlet=G1/4 Exhaust=PT1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4A230P-08 |
Inlet=Outlet=G1/4 Exhaust=PT1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4A310-08 |
G1/4 |
2 position 5 way |
4 times/second |
25.0(1.40) |
|
4A320-08 |
G1/4 |
2 position 5 way |
4 times/second |
25.0(1.40) |
|
4A330C-08 |
G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4A330E-08 |
G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4A330P-08 |
G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4A310-10 |
Inlet=Outlet=G3/8 Exhaust=PT1/4 |
2 position 5 way |
4 times/second |
30.0(1.67) |
|
4A320-10 |
Inlet=Outlet=G3/8 Exhaust=PT1/4 |
2 position 5 way |
4 times/second |
30.0(1.67) |
|
4A330C-10 |
Inlet=Outlet=G3/8 Exhaust=PT1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4A330E-10 |
Inlet=Outlet=G3/8 Exhaust=PT1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4A330P-10 |
Inlet=Outlet=G3/8 Exhaust=PT1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4A410-15 |
G1/2 |
2 position 5 way |
3 times/second |
50.0(2.79) |
|
4A420-15 |
G1/2 |
2 position 5 way |
3 times/second |
50.0(2.79) |
|
4A430C-15 |
G1/2 |
Three position five way |
3 times/second |
30.0(1.67) |
|
4A430E-15 |
G1/2 |
Three position five way |
3 times/second |
30.0(1.67) |
|
4A430P-15 |
G1/2 |
Three position five way |
3 times/second |
30.0(1.67) |
